• Sale
  • Regular price £2,399.00
VAT included. Shipping calculated at checkout.

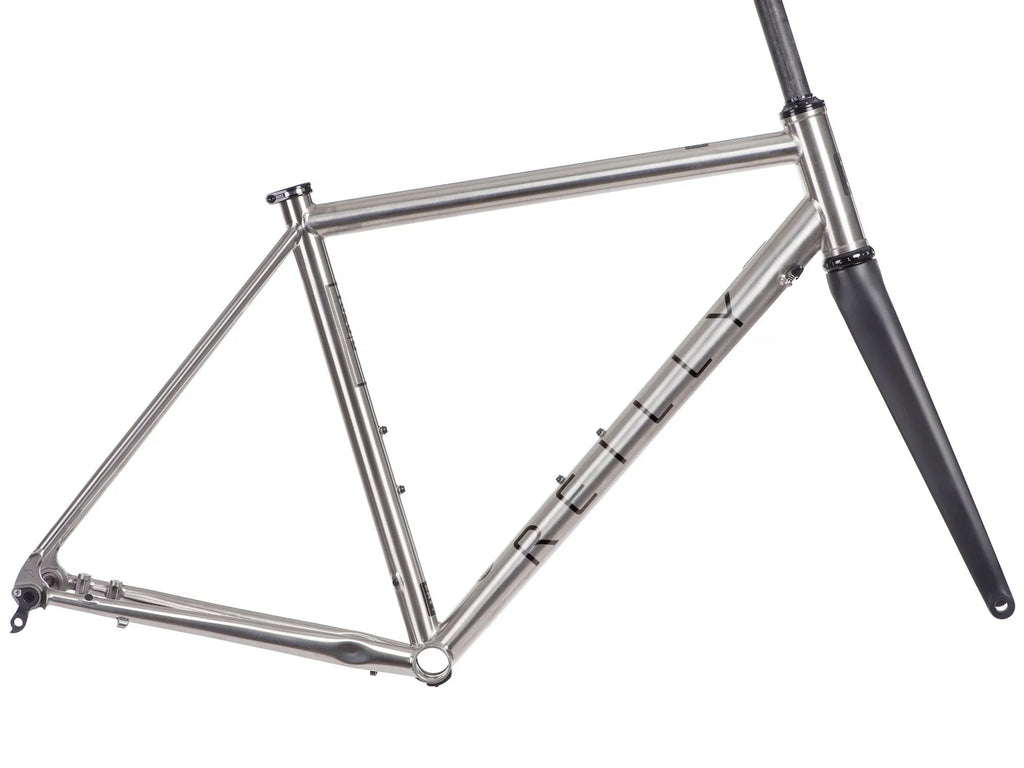

The disc version of Reilly’s much-lauded T325. A road race / sportive favourite, equally suited to the Sunday club run or crushing the miles on your next endurance challenge.
Fast, responsive and surprisingly lightweight, the T325D is the outcome of years of expertise in producing titanium bike frames. It perfectly balances the best qualities of titanium (stiffness, weight, comfort and durability) to produce an exceptionally direct, but velvety smooth road experience. Its ultra-butted 3AL-2.5V tubeset sets it apart as an out-and-out performer, with the timeless style of a classic round-tubed road bike and the all-day comfort synonymous with titanium.

Please get in touch if you have any questions concerning sizing, customisation, delivery or anything else at

Build Spec & Geometry
Titanium Grade  3AL - 2.5V
Fork UDM Carbon Fork
Headset Reilly Aluminium Headset, Black* (for 44mm head tubes, 1.1/8"-1.5" steerers) *or as chosen
Frame Features x2 Bottle Cage Mounts
Warranty   Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply

Frame Geometry

SEAT TUBE C/TOP 470mm 490mm 510mm 530mm 540mm
TOP TUBE EFFECTIVE 510mm 530mm 550mm 570mm 590mm
BB DROP 72mm 72mm 72mm 72mm 72mm
CHAINSTAY LENGTH 405mm 407mm 408mm 410mm 410mm
FORK RAKE 43mm 43mm 43mm 43mm 43mm
TRAIL 66mm 63mm 56mm 56mm 56mm
FRONT CENTRE 576mm 578mm 584mm 599mm 619mm
WHEELBASE 970mm 974mm 981mm 996mm 1016mm
STANDOVER 736mm 753mm 774mm 792mm 804mm
HEAD TUBE 110mm 130mm 150mm 170mm 185mm
STACK 524mm 541mm 564mm 583mm 597mm
REACH 372mm 374mm 382mm 392mm 407mm

Rider Height vs Frame Sizing

Rider Height (Ft/in) Rider Height (Metres) Suggested Frame Size
5'1" to 5'4" 1.55m to 1.63m EXTRA EXTRA SMALL
5'3" to 5'6" 1.60m to 1.68m EXTRA SMALL
5'5" to 5'8" 1.65m to 1.73m SMALL
5'7" to 6'0" 1.70m to 1.83m MEDIUM
5'11" to 6'2" 1.80m to 1.88m LARGE
6'1" to 6'4" 1.85m to 1.93m EXTRA LARGE
6'3" to 6'6" 1.91m to 1.98m EXTRA EXTRA LARGE
